Oil-less Reciprocating

Oil-less reciprocating compressors are widely used for almost all healthcare applications including hospitals, laboratories, dental offices, pharmaceutical, robotics and instrument air. These 100% dry compressors run slower and cooler which ensures efficient operation, longer pump life and less maintenance. Maintenance is simple and due to the longevity of the unit is very cost effective. This technology is environmentally friendly since no hazardous waste oil disposal is necessary.

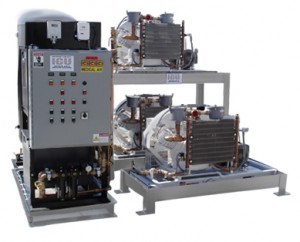

Our ICU Oil-less Reciprocating systems are built in modules for easy installation and service on your site. The high quality pumps we use are equipped with inlet filters, high temperature shut down/alarms and air cooled aftercoolers with automatic separator drains. Each system also comes with an NFPA99 compliant drying, filtration and regulating system, dew point monitor, carbon monoxide monitor and any specialty options required for specific healthcare applications. The units are air cooled saving substantial dollars per year in the cost of cooling water. We only use A.S.M.E. certified receivers, interior coated when required, and U.L. approved control panels. All ICU medical air systems are pre-plumbed and pre-wired for single point connections and meet or exceed NFPA99C codes and other required regulations.

The tables below list our standard packages or we can build any unit to your exact specifications. Please contact our engineering department for more information

Equipment Features:

  • Efficient V-Belt design – TEFC motors are standard
  • 100% Duty Cycle for continuous operation when necessary
  • Environmentally friendly – 100% oil-less design
  • High pumping capacity and conservative speed
  • Air cooled design requires no water for operation

System Advantages:

  • Totally sealed, pre-lubricated bearings for long service life
  • Graphite material gaskets comply with EPA health standards
  • Free floating piston rings on all connecting rods for trouble-free operation
  • Corrosion resistant valve plates and cylinders
  • Slower compressor speed reduces overall operating costs

Questions? Feel free to contact us for assistance.

Duplex Horizontal Oil-less Reciprocating NFPA Compliant Medical Air Systems

* System capacities are shown with reserve compressor as redundant standby to comply with NFPA 99.

Duplex Horizontal Reciprocating with Desiccant Dryers
Form# Description Image hp / pump

Capacity SCFM @ 50 PSIG

Receiver
(gallons)
Select any model #
below to open pdf
per/pump per/system*
1302 Duplex Horizontal Reciprocating with Desiccant Dryers 1.0 3.40 3.40 120 A71M-DTA-4HE-D
2.0 8.30 8.30 120 A71M-DTC-4HE-D
3.0 11.30 11.30 120 A71M-DTD-4HE-D
5.0 18.60 18.60 120 A71M-DTE-4HE-D

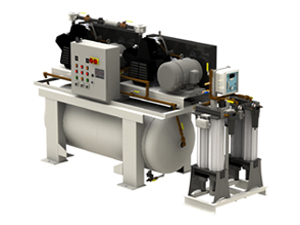

Duplex Horizontal Reciprocating with Desiccant Dryers
Form# Description Image hp / pump

Capacity SCFM @ 50 PSIG

Receiver
(gallons)
Select any model #
below to open pdf
per/pump per/system*
1303 Duplex Horizontal Reciprocating with Desiccant Dryers 7.5 29.00 29.00 240 A71M-DTF-6HE-D
10.0 36.20 36.20 240 A71M-DTH-6HE-D
15.0 50.90 50.90 240 A71M-DTJ-6HE-D

Duplex Stacked Oil-less Reciprocating NFPA Compliant Medical Air Systems

* System capacities are shown with reserve compressor as redundant standby to comply with NFPA 99.

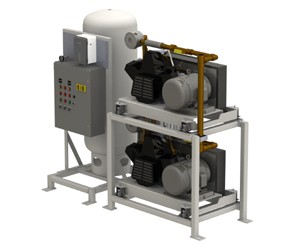

Duplex Stacked Reciprocating with Desiccant Dryers
Form# Description Image hp / pump

Capacity SCFM @ 50 PSIG

Receiver
(gallons)
Select any model #
below to open pdf
per/pump per/system*
1305 Duplex Stacked Reciprocating with Desiccant Dryers 7.5 29.00 29.00 120 A71M-DSF-4VE-D
7.5 29.00 29.00 200 A71M-DSF-5VE-D
10 36.20 36.20 120 A71M-DSH-4VE-D
10 36.20 36.20 200 A71M-DSH-5VE-D
15 50.90 50.90 120 A71M-DSJ-4VE-D
15 50.90 50.90 200 A71M-DSJ-5VE-D

Triplex Stacked Oil-less Reciprocating NFPA Compliant Medical Air Systems

* System capacities are shown with reserve compressor as redundant standby to comply with NFPA 99.

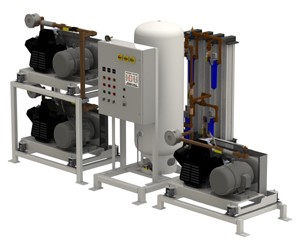

Triplex Stacked T Configuration Reciprocating with Desiccant Dryers
Form# Description Image hp / pump

Capacity SCFM @ 50 PSIG

Receiver
(gallons)
Select any model #
below to open pdf
per/pump per/system*
1308 Triplex Stacked T Configuration Reciprocating with Desiccant Dryers 7.5 29.00 58.00 120 A71M-TSF-4VE-D
7.5 29.00 58.00 200 A71M-TSF-5VE-D
10 36.20 72.40 120 A71M-TSH-4VE-D
10 36.20 72.40 200 A71M-TSH-5VE-D
15 50.90 101.80 120 A71M-TSJ-4VE-D
15 50.90 101.80 200 A71M-TSJ-5VE-D

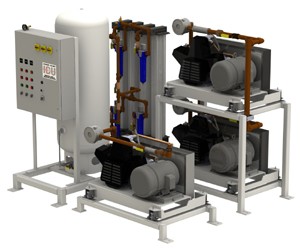

Triplex Stacked C Configuration Reciprocating with Desiccant Dryers
Form# Description Image hp / pump

Capacity SCFM @ 50 PSIG

Receiver
(gallons)
Select any model #
below to open pdf
per/pump per/system*
1309 Triplex Stacked C Configuration Reciprocating with Desiccant Dryers 7.5 29.00 58.00 120 A71M-TSF-4VE-D
7.5 29.00 58.00 200 A71M-TSF-5VE-D
10 36.20 72.40 120 A71M-TSH-4VE-D
10 36.20 72.40 200 A71M-TSH-5VE-D
15 50.90 101.80 120 A71M-TSJ-4VE-D
15 50.90 101.80 200 A7M-TSJ-5VE-D

Quadplex Stacked Oil-less Reciprocating NFPA Compliant Medical Air Systems

* System capacities are shown with reserve compressor as redundant standby to comply with NFPA 99.

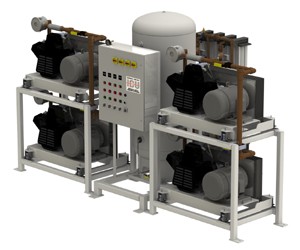

Quadplex Stacked T Configuration Reciprocating with Desiccant Dryers
Form# Description Image hp / pump

Capacity SCFM @ 50 PSIG

Receiver
(gallons)
Select any model #
below to open pdf
per/pump per/system*
1312 Quadplex Stacked T Configuration Reciprocating with Desiccant Dryers 7.5 29.00 87.00 120 A71M-QSF-4VE-D
7.5 29.00 87.00 200 A71M-QSF-5VE-D
10 36.20 108.60 120 A71M-QSH-4VE-D
10 36.20 108.60 200 A71M-QSH-5VE-D
15 50.90 152.70 120 A71M-QSJ-4VE-D
15 50.90 152.70 200 A71M-QSJ-5VE-D

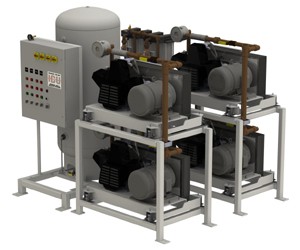

Quadplex Stacked C Configuration Reciprocating with Desiccant Dryers
Form# Description Image hp / pump

Capacity SCFM @ 50 PSIG

Receiver
(gallons)
Select any model #
below to open pdf
per/pump per/system*
1313 Quadplex Stacked C Configuration Reciprocating with Desiccant Dryers 7.5 29.00 87.00 120 A71M-QSF-4VE-D
10 36.20 108.60 120 A71M-QSH-4VE-D
10 36.20 108.60 200 A71M-QSH-5VE-D
15 50.90 152.70 120 A71M-QSJ-4VE-D
15 50.90 152.70 200 A71M-QSJ-5VE-D

Questions? Feel free to contact us for assistance.

* System capacities are shown with reserve vacuum pump as redundant standby to comply with NFPA 99.
