Dry Rotary Claw
Non-contact, dry rotary claw pumps generate a vacuum efficiently, economically and have a long service life. With their unique, non-contacting, friction free design, energy is not wasted from internal friction or drag like other pump designs. In comparison to other vacuum technologies, they offer safe and reliable operation at fairly low noise levels. Rotary claw is a single stage, positive displacement, continuous duty type vacuum pump.
The high quality pumps we use are a direct drive design requiring no belts and are driven by TEFC motors. These pumps are capable of operating continuously through their full vacuum range up to 28.4” HG. No water is required for the operation of these units saving a substantial sum per year in the cost of cooling water.
Our ICU Rotary Claw systems are equipped with by-pass piping, vacuum gauge, double valve drain system, and sight gauge. We only use A.S.M.E. certified receivers and U.L. approved control panels. Systems are pre-plumbed and pre-wired for single point connections. All systems meet or exceed NFPA99 codes and other required regulations.
Our standard systems are shown in the tables below. As a custom manufacturer we are able to build systems that will meet any of your demands or needs. Please contact our engineering department for more information.
Equipment Features:
- TEFC motors are standard
- 100% Duty Cycle
- High pumping capacity = high volumetric efficiency
- Air cooled – no cooling water is required
- Direct drive design requires no belts for operation
System Advantages:
- Non-contact design eliminates wear and parts to replace
- Dry running – no sealing or lubricating required in the pumping chamber
- Non-return valve isolates the system when pump is stopped
- Low maintenance requirements result in lower operating costs
- Optional Variable Frequency Drive (VFD) for additional energy cost savings
Questions? Feel free to contact us for assistance.

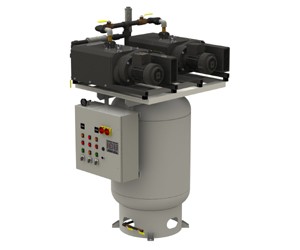

Duplex Vertical Tank Mount Dry Rotary Claw
* System capacities are shown with reserve vacuum pump as redundant standby to comply with NFPA 99.
Duplex Vertical Tank Mount Dry Rotary Claw
| Form# | Description | Image | hp / pump | Capacity SCFM @ 19" HG |
Receiver (gallons) |
Select any model # below to open pdf |
|
|---|---|---|---|---|---|---|---|
| per/pump | per/system* | ||||||
| 3305 | Duplex Vertical Tank Mount Dry Rotary Claw | |
2.0 | 16.0 | 16.0 | 120 | V78M-DTC-4VS | 3.0 | 21.0 | 21.0 | 120 | V78M-DTD-4VS | 4.0 | 29.0 | 29.0 | 120 | V78M-DTI-4VS | 5.4 | 38.0 | 38.0 | 120 | V78M-DTU-4VS |

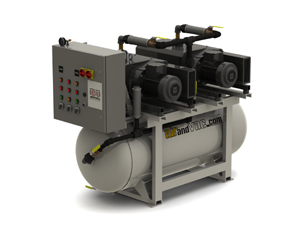

Duplex Horizontal Tank Mount Dry Rotary Claw
* System capacities are shown with reserve vacuum pump as redundant standby to comply with NFPA 99.
Duplex Horizontal Tank Mount Dry Rotary Claw
| Form# | Description | Image | hp / pump | Capacity SCFM @ 19" HG |
Receiver (gallons) |
Select any model # below to open pdf |
|
|---|---|---|---|---|---|---|---|
| per/pump | per/system* | ||||||
| 3306 | Duplex Horizontal Tank Mount Dry Rotary Claw | |
2.0 | 16.00 | 16.00 | 120 | V78M-DTC-4HS | 3.0 | 21.00 | 21.00 | 120 | V78M-DTD-4HS | 4.0 | 29.00 | 29.00 | 120 | V78M-DTI-4HS | 5.4 | 38.00 | 38.00 | 120 | V78M-DTU-4HS |

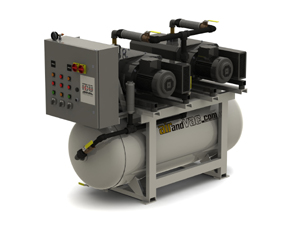

Duplex HorizontalTank Mount Dry Rotary Claw
| Form# | Description | Image | hp / pump | Capacity SCFM @ 19" HG |
Receiver (gallons) |
Select any model # below to open pdf |
|
|---|---|---|---|---|---|---|---|
| per/pump | per/system* | ||||||
| 3307 | Duplex HorizontalTank Mount Dry Rotary Claw | |
6.4 | 52.00 | 52.00 | 120 | V78M-DTS-4HS | 6.4 | 52.00 | 52.00 | 200 | V78M-DTS-5HS | 7.5 | 65.00 | 65.00 | 120 | V78M-DTF-4HS | 7.5 | 65.00 | 65.00 | 200 | V78M-DTF-5HS | 8.7 | 77.00 | 77.00 | 120 | V78M-DTT-4HS | 8.7 | 77.00 | 77.00 | 200 | V78M-DTT-5HS |

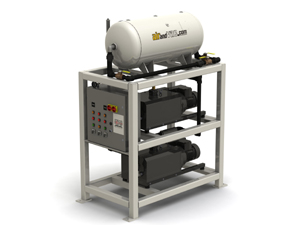

Duplex Horizontal Tank-Over Rotary Claw
* System capacities are shown with reserve vacuum pump as redundant standby to comply with NFPA 99.
Duplex Horizontal Tank-Over Dry Rotary Claw
| Form# | Description | Image | hp / pump | Capacity SCFM @ 19" HG |
Receiver (gallons) |
Select any model # below to open pdf |
|
|---|---|---|---|---|---|---|---|
| per/pump | per/system* | ||||||
| 3308 | Duplex Horizontal Tank-Over Dry Rotary Claw | |
3.0 | 21.00 | 21.00 | 60 | V78M-DSD-3TS | 4.0 | 29.00 | 29.00 | 60 | V78M-DSI-3TS | 5.4 | 38.00 | 38.00 | 60 | V78M-DSU-3TS | 6.4 | 52.00 | 52.00 | 60 | V78M-DSS-3TS | 7.5 | 65.00 | 65.00 | 60 | V78M-DSF-3TS | 8.7 | 77.00 | 77.00 | 60 | V78M-DST-3TS |

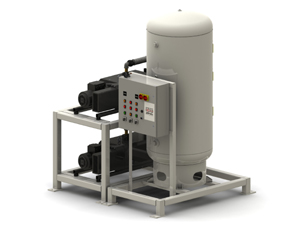

Duplex Stacked Dry Rotary Claw
* System capacities are shown with reserve vacuum pump as redundant standby to comply with NFPA 99.
Duplex Stacked Rotary Claw
| Form# | Description | Image | hp / pump | Capacity SCFM @ 19" HG |
Receiver (gallons) |
Select any model # below to open pdf |
|
|---|---|---|---|---|---|---|---|
| per/pump | per/system* | ||||||
| 3309 | Duplex Stacked Rotary Claw | |
5.4 | 38.00 | 38.00 | 120 | V78M-DSU-4VS | 5.4 | 38.00 | 38.00 | 200 | V78M-DSU-5VS | 6.4 | 52.00 | 52.00 | 120 | V78M-DSS-4VS | 6.4 | 52.00 | 52.00 | 200 | V78M-DSS-5VS | 7.5 | 65.00 | 65.00 | 120 | V78M-DSF-4VS | 7.5 | 65.00 | 65.00 | 200 | V78M-DSF-5VS |

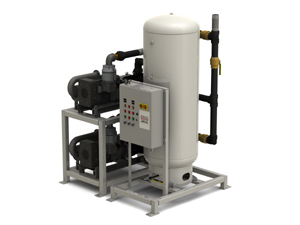

Duplex Stacked Dry Rotary Claw
| Form# | Description | Image | hp / pump | Capacity SCFM @ 19" HG |
Receiver (gallons) |
Select any model # below to open pdf |
|
|---|---|---|---|---|---|---|---|
| per/pump | per/system* | ||||||
| 3310 | Duplex Stacked Dry Rotary Claw | |
8.7 | 77.00 | 77.00 | 120 | V78M-DST-4VS | 8.7 | 77.00 | 77.00 | 200 | V78M-DST-5VS | 10.0 | 89.00 | 89.00 | 120 | V78M-DSH-4VS | 10.0 | 89.00 | 89.00 | 200 | V78M-DSH-5VS | 15.0 | 129.00 | 129.00 | 200 | V78M-DSJ-5VS | 15.0 | 129.00 | 129.00 | 240 | V78M-DSJ-6VS |

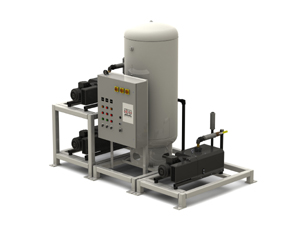

Triplex Stacked Dry Rotary Claw
* System capacities are shown with reserve vacuum pump as redundant standby to comply with NFPA 99.
Triplex Stacked Dry Rotary Claw
| Form# | Description | Image | hp / pump | Capacity SCFM @ 19" HG |
Receiver (gallons) |
Select any model # below to open pdf |
|
|---|---|---|---|---|---|---|---|
| per/pump | per/system* | ||||||
| 3311 | Triplex Stacked Dry Rotary Claw | |
5.4 | 38.00 | 76.00 | 120 | V78M-TSU-4VS | 5.4 | 38.00 | 76.00 | 200 | V78M-TSU-5VS | 6.4 | 52.00 | 104.00 | 120 | V78M-TSS-4VS | 6.4 | 52.00 | 104.00 | 200 | V78M-TSS-5VS | 7.5 | 65.00 | 130.00 | 200 | V78M-TSF-5VS | 7.5 | 65.00 | 130.00 | 240 | V78M-TSF-6VS |
Triplex Stacked Dry Rotary Claw
| Form# | Description | Image | hp / pump | Capacity SCFM @ 19" HG |
Receiver (gallons) |
Select any model # below to open pdf |
|
|---|---|---|---|---|---|---|---|
| per/pump | per/system* | ||||||
| 3313 | Triplex Stacked Dry Rotary Claw | |
8.7 | 77.00 | 154.00 | 120 | V78M-TST-4VS | 8.7 | 77.00 | 154.00 | 200 | V78M-TST-5VS | 10.0 | 89.00 | 178.00 | 120 | V78M-TSH-4VS | 10.0 | 89.00 | 178.00 | 200 | V78M-TSH-5VS | 15.0 | 129.00 | 258.00 | 200 | V78M-TSJ-5VS | 15.0 | 129.00 | 258.00 | 240 | V78M-TSJ-6VS |

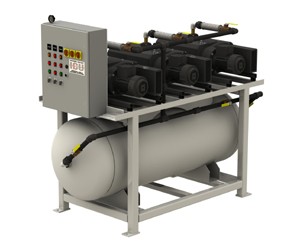

Triplex Horizontal Tank Mount Dry Rotary Claw
* System capacities are shown with reserve vacuum pump as redundant standby to comply with NFPA 99.
Triplex Horizontal Tank Mount Dry Rotary Claw
| Form# | Description | Image | hp / pump | Capacity SCFM @ 19" HG |
Receiver (gallons) |
Select any model # below to open pdf |
|
|---|---|---|---|---|---|---|---|
| per/pump | per/system* | ||||||
| 3312 | Triplex Horizontal Tank Mount Dry Rotary Claw | |
4.0 | 29.00 | 58.00 | 120 | V78M-TTI-4HS | 4.0 | 29.00 | 58.00 | 200 | V78M-TTI-5HS | 5.4 | 38.00 | 76.00 | 120 | V78M-TTU-4HS | 5.4 | 38.00 | 76.00 | 200 | V78M-TTU-5HS |

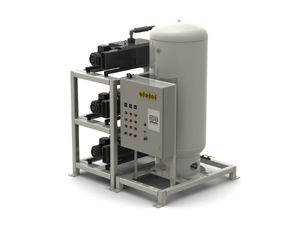

Triplex Stacked “Space-Saver” Dry Rotary Claw
* System capacities are shown with reserve vacuum pump as redundant standby to comply with NFPA 99.
Triplex Stacked “Space-Saver” Dry Rotary Claw
| Form# | Description | Image | hp / pump | Capacity SCFM @ 19" HG |
Receiver (gallons) |
Select any model # below to open pdf |
|
|---|---|---|---|---|---|---|---|
| per/pump | per/system* | ||||||
| 3314 | Triplex Stacked “Space-Saver” Dry Rotary Claw | |
5.4 | 38.00 | 114.00 | 120 | V78M-TVU-4VS | 5.4 | 38.00 | 114.00 | 200 | V78M-TVU-5VS | 6.4 | 52.00 | 156.00 | 120 | V78M-TVS-4VS | 6.4 | 52.00 | 156.00 | 200 | V78M-TVS-5VS | 7.5 | 65.00 | 195.00 | 200 | V78M-TVF-5VS | 7.5 | 65.00 | 195.00 | 240 | V78M-TVF-6VS |
Triplex Stacked “Space-Saver” Dry Rotary Claw
| Form# | Description | Image | hp / pump | Capacity SCFM @ 19" HG |
Receiver (gallons) |
Select any model # below to open pdf |
|
|---|---|---|---|---|---|---|---|
| per/pump | per/system* | ||||||
| 3315 | Triplex Stacked “Space-Saver” Dry Rotary Claw | |
8.7 | 77.00 | 231.00 | 120 | V78M-TVT-4VS | 8.7 | 77.00 | 231.00 | 200 | V78M-TVT-5VS | 10.0 | 89.00 | 267.00 | 120 | V78M-TVH- 4VS | 10.0 | 89.00 | 267.00 | 200 | V78M-TVH-5VS |

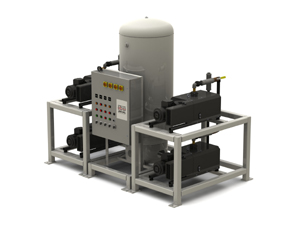

Quadplex Stacked Dry Rotary Claw
* System capacities are shown with reserve vacuum pump as redundant standby to comply with NFPA 99.
Quadplex Stacked Dry Rotary Claw
| Form# | Description | Image | hp / pump | Capacity SCFM @ 19" HG |
Receiver (gallons) |
Select any model # below to open pdf |
|
|---|---|---|---|---|---|---|---|
| per/pump | per/system* | ||||||
| 3316 | Quadplex Stacked Dry Rotary Claw | |
5.4 | 38.00 | 114.00 | 120 | V78M-QSU-4VS | 5.4 | 38.00 | 114.00 | 200 | V78M-QSU-5VS | 6.4 | 52.00 | 156.00 | 120 | V78M-QSS-4VS | 6.4 | 52.00 | 156.00 | 200 | V78M-QSS-5VS | 7.5 | 65.00 | 195.00 | 200 | V78M-QSF-5VS | 7.5 | 65.00 | 195.00 | 240 | V78M-QSF-6VS |

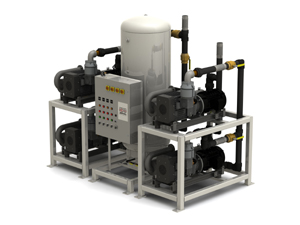

Quadplex Stacked Dry Rotary Claw
| Form# | Description | Image | hp / pump | Capacity SCFM @ 19" HG |
Receiver (gallons) |
Select any model # below to open pdf |
|
|---|---|---|---|---|---|---|---|
| per/pump | per/system* | ||||||
| 3317 | Quadplex Stacked Dry Rotary Claw | |
8.7 | 77.00 | 231.00 | 120 | V78M-QST-4VS | 8.7 | 77.00 | 231.00 | 200 | V78M-QST-5VS | 10.0 | 89.00 | 267.00 | 120 | V78M-QSH- 4VS | 10.0 | 89.00 | 267.00 | 200 | V78M-QSH-5VS | 15.0 | 129.00 | 387.00 | 200 | V78M-QSJ-5VS | 15.0 | 129.00 | 387.00 | 240 | V78M-QSJ-6VS |
